Endless CNC

R33 Skyline DIN Triple CANBUS Gauge

R33 Skyline DIN Triple CANBUS Gauge

Regular price £450.00 GBP
Regular price Sale price £450.00 GBP
Sale Sold out
Tax included.

LIMITED AMOUNT AVAILABLE.

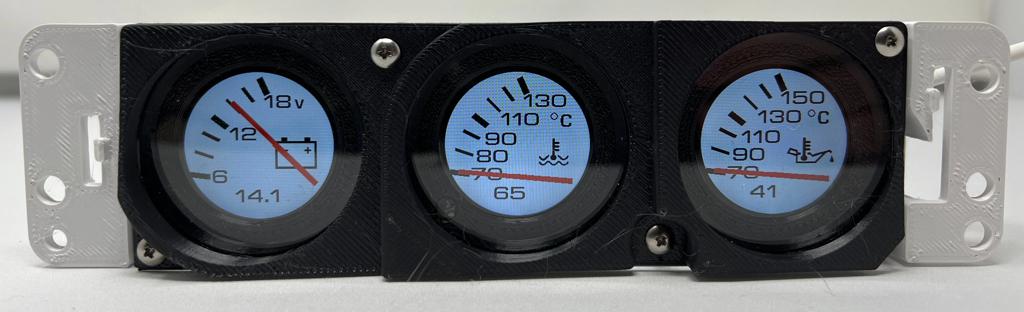

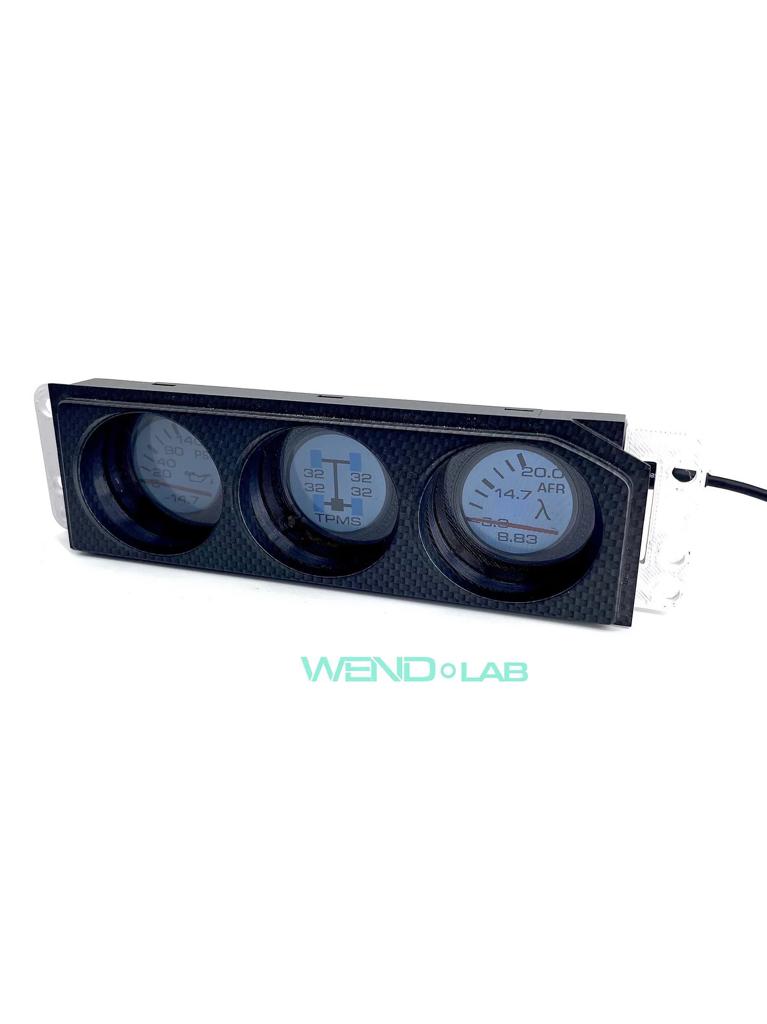

This CANBUS gauge replaces the factory DIN triple meter in your R33 Skyline with 3 fully configurable gauges to take advantage of the CANBUS data stream from your aftermarket ECU.

Features :

  • Customizable appearances
  • Configurable warning levels
  • Configuration via IOS App over Bluetooth
  • Auto-dimming displays with night mode
  • Single DTM 4 pin connector wiring

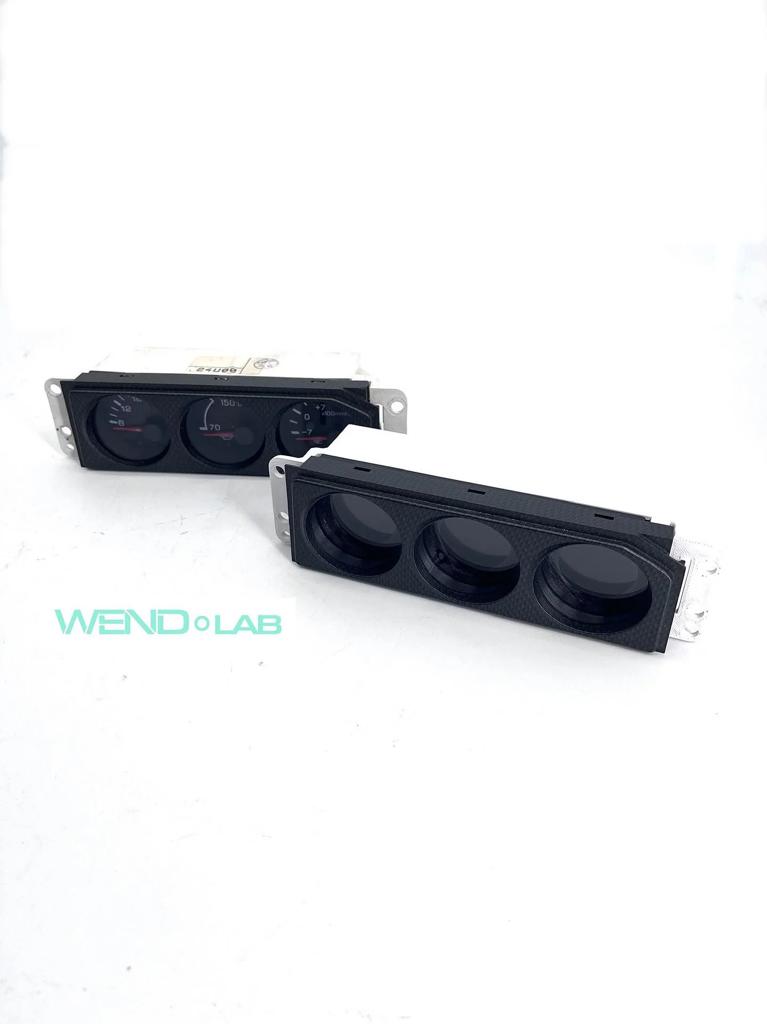

  • Direct replacement of factory unit -- uses factory bezel

Supported ECUs

  • Haltech (CAN protocol v2)
  • Link (G-Series)
  • Emtron (KV Series)

Platforms in Development :

  • MoTeC 1 Series
  • ECUMaster Black Series

Supported gauges

(Requires that your ECU has the appropriate sensors and CAN configuration) :

  • Battery Voltage
  • Water Temp
  • Oil Temp
  • Fuel Temp
  • Intake Air Temp
  • Exhaust Gas Temp
  • Water Pressure
  • Oil Pressure
  • Fuel Pressure
  • Boost Pressure
  • Air Fuel Ratio
  • Ethanol Content
  • Injector Duty
  • Throttle Position
  • Tire Temp/Pressure
  • Fuel Tuning (AFR, Fuel Pressure, Injector Duty)
  • Engine Health (Oil Temp/Presure, Water Temp/Pressure, IAT, Voltage, EGT)
  • Boost Control (Boost vs. Target, Solenoid Duty, Ethanol %)
  • Gear Position
